Zadar Labs 4D Imaging Radars

Advanced Radar Solutions for Safety, Automation and Intelligent Systems

ITOM ENGINEERING is the official representative and distributor of Zadar Labs in Türkiye, providing local technical and commercial support for advanced Software-Defined 4D Imaging Radar solutions.

Zadar Labs develops high-performance radar sensors and perception technologies that enable intelligent systems to detect, locate and track objects by measuring distance, speed, direction and elevation. Unlike conventional radar, 4D imaging radar produces dense and detailed environmental data that supports reliable perception in complex and safety-critical applications.

The technology is designed to operate effectively in rain, fog, dust, darkness, glare and other conditions that can reduce the performance of cameras and optical sensors.

Zadar Labs Product Portfolio

Zadar Labs provides a scalable portfolio of radar hardware and software for long-range, mid-range and near-field sensing requirements.

The product family includes:

  • zPRIME 3.0: ultra-performance, long-range 4D imaging radar

  • zPULSE: compact and versatile radar for general-purpose applications

  • zSIGNAL: high-performance imaging radar in a compact package

  • zPROX: ultra-compact radar for near-field detection and wide coverage

  • zVUE: radar operating and sensor-management software

  • zPRIME Core and Pro Software: advanced radar processing and perception capabilities

  • Software development tools, drivers and integration support for C++, Python and ROS environments

This configurable platform supports both mobile and stationary systems and can be adapted to different requirements for range, field of view, resolution and sensitivity.

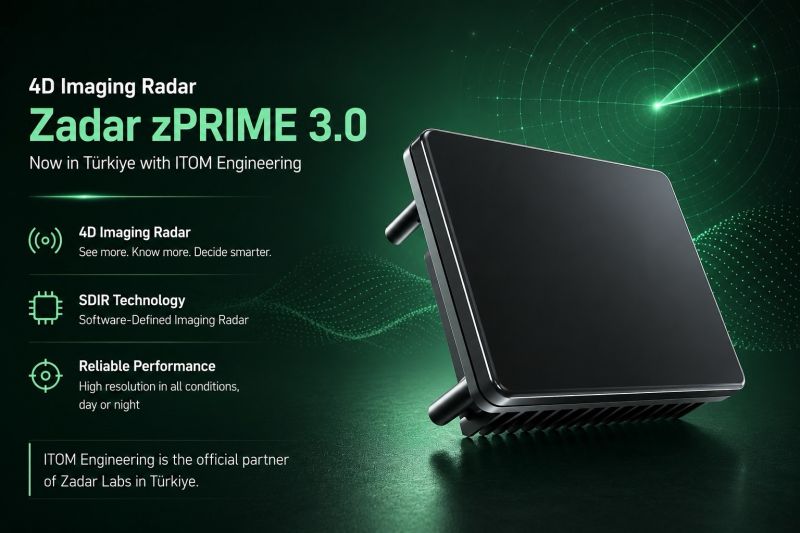

zPRIME 3.0 — Ultra-Performance 4D Imaging Radar

zPRIME 3.0 is Zadar Labs’ third-generation flagship imaging radar, developed for applications requiring long detection range, fine angular resolution and dense 4D point-cloud data.

The system combines advanced radar hardware with Zadar Labs’ Software-Defined Imaging Radar technology, enabling developers to configure and optimise sensor performance according to the needs of each application.

Key capabilities include:

  • Truck detection at distances exceeding 1,000 metres

  • Passenger vehicle detection beyond 800 metres

  • Human detection beyond 250 metres

  • Angular accuracy of ±0.05 degrees

  • Static angular resolution as fine as 0.35° × 0.4°

  • Available fields of view of 120° × 24°, 120° × 50° and 120° × 90°

  • Dense 4D environmental perception, including range, velocity, azimuth and elevation

  • IP68 environmental protection

  • Operating temperature range from −40°C to +85°C

  • Compact dimensions of 140 × 103 × 36 mm

  • Integration with Zadar software, SDK and multi-radar sensing solutions

By combining long-range detection with high spatial resolution, zPRIME 3.0 can support applications where conventional radar lacks sufficient detail and where cameras or LiDAR may be affected by adverse environmental or lighting conditions.

Applications

Zadar Labs radar technologies can be applied across a wide range of industries, including:

  • Autonomous and assisted-driving systems

  • Commercial and special-purpose vehicles

  • Mobile robots and autonomous industrial equipment

  • Mining, agriculture and heavy machinery

  • Smart infrastructure and intelligent transportation systems

  • Traffic monitoring and classification

  • Ports, logistics centres and transportation hubs

  • Perimeter protection and wide-area surveillance

  • Anti-collision and operator-assistance systems

  • Crowd monitoring and privacy-preserving occupancy detection

  • Mapping and navigation in GPS-denied environments

The sensors may be deployed individually or combined in multi-radar configurations to provide wider coverage and more comprehensive environmental perception.

Representation and Support in Türkiye

As the official Zadar Labs representative in Türkiye, ITOM ENGINEERING supports customers throughout the evaluation, selection and implementation of radar-based sensing solutions.

Our services include:

  • Application and requirement analysis

  • Selection of the appropriate radar platform

  • Technical product information and consultation

  • Demonstration and evaluation coordination

  • Sensor sourcing and commercial support

  • Mechanical and electrical integration assistance

  • Communication interface and software integration support

  • Prototype and proof-of-concept development

  • Test planning and performance evaluation

  • Coordination with the Zadar Labs engineering team

  • Support for pilot projects and future production programmes

Our objective is not only to provide radar hardware, but also to help customers identify the appropriate sensing architecture and integrate it successfully into their vehicles, machines, infrastructure or intelligent systems.

Engineering Better Perception

Reliable perception is essential for safer vehicles, autonomous machines and intelligent infrastructure. Zadar Labs combines the environmental robustness of radar with high-resolution 4D sensing and software-defined flexibility.

Through our cooperation with Zadar Labs, ITOM ENGINEERING brings these advanced radar technologies to customers in Türkiye and supports their development from initial feasibility studies to system integration and deployment.

For product information, technical evaluation, demonstrations or project cooperation, please contact ITOM ENGINEERING.
